UCohtmlBaseComponent Class Reference

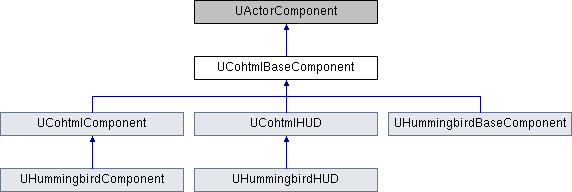

Inheritance diagram for UCohtmlBaseComponent:

Public Types
typedef TArray< TWeakObjectPtr< UCohtmlBaseComponent > >	WeakCohtmlComponentsArray

Public Member Functions
void	SetSoundAttenuation (const FSoundAttenuationSettings &Settings)
void	RegisterForEvent (UPARAM(DisplayName="JavaScript Event Name") FString JSEventName, UPARAM(DisplayName="Event") FCohtmlJSEventBPCallback Delegate)
virtual void	Resize (int32 width, int32 height)
virtual void	ResizeRenderTarget (int32 width, int32 height)
bool	IsReadyToCreateView () const
bool	IsReadyForBindings () const
bool	HasRequestedView () const
void	ShowPaintRects (bool show)
void	Load (const FString &path)
void	Reload ()
void	DebugSaveNextFrame ()
void	BeginDebugFrameSave ()
void	EndDebugFrameSave ()
void	EnableDelayedUpdate (bool bEnabled)
void	EnableRendering (bool bEnabled)
UCohtmlJSEvent *	CreateJSEvent ()
void	TriggerJSEvent (const FString &name, UCohtmlJSEvent *eventData) const
void	CreateDataModelFromObject (const FString &Name, UObject *Model)
void	RemoveDataModelFromObject (UObject *Model)
void	CreateDataModelFromStruct (const FString &Name, const TFieldPath< FStructProperty > Arg)
void	UpdateWholeDataModelFromStruct (const TFieldPath< FStructProperty > Struct) const
void	RemoveDataModelFromStruct (const TFieldPath< FStructProperty > Struct) const
void	UpdateWholeDataModelFromObject (UObject *Model) const
void	SynchronizeModels () const
void	PreloadTextureSync (const FString &AssetPath)
void	PreloadTextureAsync (const FString &AssetPath)
void	AddPreloadedTexture (UTexture2D *Texture)
bool	RemovePreloadedTextureFromPath (const FString &AssetPath)
bool	RemovePreloadedTexture (UTexture2D *Texture)
void	RemoveAllPreloadedTextures ()
virtual bool	EnsureMeshData (ECohtmlComponentMeshInit MeshInitialization=ECohtmlComponentMeshInit::LazyInit)
virtual void	InitializeComponent () override
virtual void	BeginDestroy () override
virtual bool	IsReadyForFinishDestroy () override
virtual void	FinishDestroy () override
virtual bool	GetMeshes (TArray< TWeakObjectPtr< UStaticMeshComponent >> &WeakMeshes) const
virtual void	TickComponent (float DeltaTime, enum ELevelTick TickType, FActorComponentTickFunction *ThisTickFunction) override
cohtml::View *	GetView () const
cohtml::ViewRenderer *	GetViewRenderer () const
FCohtmlGesturePolicy *	GetGesturePolicy ()
FCohtmlViewWrapper *	GetViewWrapper () const
const FCohtmlCaretRect &	GetCaretRect () const
void	SetCaretRect (int x, int y, unsigned width, unsigned height)
virtual int32	GetUserIndex ()
void	SetInputFocusToUI ()
void	RestoreInputFocusFromUI (bool bForceFocusToGame=false)
cohtml::ECohtmlPageLoadState	GetCurrentPageState () const
	DECLARE_FUNCTION (execCreateDataModelFromStruct)
	DECLARE_FUNCTION (execUpdateWholeDataModelFromStruct)
	DECLARE_FUNCTION (execRemoveDataModelFromStruct)

Static Public Member Functions
static void	CreateSystemIfNecessary (UWorld *World)
static class ACohtmlSystem *	GetSystemActor (UWorld *World)
static WeakCohtmlComponentsArray::TIterator	GetUCohtmlBaseComponentIterator (UWorld *world)

Public Attributes
FCohtmlReadyForBindingsSignature	ReadyForBindings
FCohtmlBindingsReleasedSignature	BindingsReleased
FCohtmlScriptingReady	ScriptingReady
TArray< UTexture2D * >	PreloadedTextures
bool	bEnableComplexCSSSupport
UTextureRenderTarget2D *	Texture
TEnumAsByte< enum TextureFilter >	Filter
bool	bReceiveInput
bool	bDelayedUpdate
bool	bUseWideColorTextures
TArray< FCohtmlMeshData >	MeshData
TArray< CohtmlDelegateFunctorWrapper >	JSEventCallbackWrappers
EMouseCursor::Type	CurrentMouseCursor

Protected Member Functions
void	CreateView (const cohtml::ViewSettings &info, const FString &url)
virtual void	SendRenderDynamicData_Concurrent () override
virtual bool	RequiresGameThreadEndOfFrameUpdates () const override

Friends
class	TCohtmlViewListener< UCohtmlBaseComponent >

Member Function Documentation

AddPreloadedTexture()

void UCohtmlBaseComponent::AddPreloadedTexture

(

UTexture2D *

Texture

)

Adds an already loaded Texture to the PreloadedTextures collection. This is useful for ensuring that the requests for UE4 textures will be working over already loaded assets, leading to fast response times.

BeginDebugFrameSave()

void UCohtmlBaseComponent::BeginDebugFrameSave

(

)

Starts saving render frames to disk

CreateDataModelFromObject()

void UCohtmlBaseComponent::CreateDataModelFromObject	(	const FString &	Name,
		UObject *	Model
	)

Creates a global variable (data model) in JavaScript from an UObject

CreateDataModelFromStruct()

void UCohtmlBaseComponent::CreateDataModelFromStruct	(	const FString &	Name,
		const TFieldPath< FStructProperty >	Arg
	)

Creates a global variable (data model) in JavaScript from a UStruct

CreateJSEvent()

UCohtmlJSEvent* UCohtmlBaseComponent::CreateJSEvent

(

)

Creates an event that will be executed in JavaScript

DebugSaveNextFrame()

void UCohtmlBaseComponent::DebugSaveNextFrame

(

)

Saves next render frame to disk

EnableDelayedUpdate()

void UCohtmlBaseComponent::EnableDelayedUpdate

(

bool

bEnabled

)

Delays UI updates until after cameras are updated. Read the section in the FAQ page of the documentation before using

EnableRendering()

void UCohtmlBaseComponent::EnableRendering

(

bool

bEnabled

)

Enables or disables the recording of rendering commands for the view. Enabled by default.

EndDebugFrameSave()

void UCohtmlBaseComponent::EndDebugFrameSave

(

)

Stops saving render frames to disk

EnsureMeshData()

virtual bool UCohtmlBaseComponent::EnsureMeshData ( ECohtmlComponentMeshInit  MeshInitialization = ECohtmlComponentMeshInit::LazyInit )

virtual

Used for specifying when the mesh needs to be ready to receive input. If left unspecified, the mesh will be loaded lazily, which means it will take between 2-4 frames for the render thread to have it available. If set to "Immediate", the render state will be flagged as dirty and the mesh will be loaded either on the same frame or at most the next. Note: Call manually right after a component's creation to guarantee that all input will be handled in the first frames.

HasRequestedView()

bool UCohtmlBaseComponent::HasRequestedView

(

)

const

Tells if a View has been scheduled for creation

IsReadyForBindings()

bool UCohtmlBaseComponent::IsReadyForBindings

(

)

const

Tells if the View is ready to be created

IsReadyToCreateView()

bool UCohtmlBaseComponent::IsReadyToCreateView

(

)

const

Tells if the View is ready to be created

Load()

void UCohtmlBaseComponent::Load

(

const FString &

path

)

Requests a new URL to be loaded in the View

PreloadTextureAsync()

void UCohtmlBaseComponent::PreloadTextureAsync

(

const FString &

AssetPath

)

Loads a Texture Asynchronously from asset Path. Once loaded, the Texture will be added to the PreloadedTextures collection. This is useful for ensuring that the requests for UE4 textures will be working over already loaded assets, leading to fast response times.

PreloadTextureSync()

void UCohtmlBaseComponent::PreloadTextureSync

(

const FString &

AssetPath

)

Loads a Texture Synchronously (BLOCKING the main thread) from asset Path. Once loaded, the Texture will be added to the PreloadedTextures collection. This is useful for ensuring that the requests for UE4 textures will be working over already loaded assets, leading to fast response times.

RegisterForEvent()

void UCohtmlBaseComponent::RegisterForEvent	(	UPARAM(DisplayName="JavaScript Event Name") FString	JSEventName,
		UPARAM(DisplayName="Event") FCohtmlJSEventBPCallback	Delegate
	)

You can use this to bind a Blueprint event to an arbitrary JavaScript event. The Blueprint event must have no parameters.

Reload()

void UCohtmlBaseComponent::Reload

(

)

Requests the View to reload the current URL

RemoveAllPreloadedTextures()

void UCohtmlBaseComponent::RemoveAllPreloadedTextures

(

)

Removes all Textures from the PreloadedTextures collection. This can be used when you no longer need any of the textures inside the collection to be kept loaded, for example after changing URL and View is fully loaded. Note: Upon destruction of the CohtmlBaseComponent, PreloadedTextures collection will be cleared automatically, so calling this method isn't mandatory.

RemoveDataModelFromObject()

void UCohtmlBaseComponent::RemoveDataModelFromObject

(

UObject *

Model

)

Removes a global variable (data model) in JavaScript from a UObject

RemoveDataModelFromStruct()

void UCohtmlBaseComponent::RemoveDataModelFromStruct

(

const TFieldPath< FStructProperty >

Struct

)

const

Removes a global variable (data model) in JavaScript from a UStruct

RemovePreloadedTexture()

bool UCohtmlBaseComponent::RemovePreloadedTexture

(

UTexture2D *

Texture

)

Removes a Texture from the PreloadedTextures collection. This can be used when you no longer need a specific texture inside the collection to be kept loaded, for example after changing URL and View is fully loaded. Note: The removal of elements is an operation with linear complexity, consider using RemoveAllPreloadedTextures instead. Note: Upon destruction of the CohtmlBaseComponent, PreloadedTextures collection will be cleared automatically, so calling this method isn't mandatory.

RemovePreloadedTextureFromPath()

bool UCohtmlBaseComponent::RemovePreloadedTextureFromPath

(

const FString &

AssetPath

)

Removes a Texture from the PreloadedTextures collection. This can be used when you no longer need a specific texture inside the collection to be kept loaded, for example after changing URL and View is fully loaded. Note: The removal of elements is an operation with linear complexity, consider using RemoveAllPreloadedTextures instead. Note: Upon destruction of the CohtmlBaseComponent, PreloadedTextures collection will be cleared automatically, so calling this method isn't mandatory.

Resize()

virtual void UCohtmlBaseComponent::Resize ( int32  width, int32  height  )

virtual

Resizes the View

Reimplemented in UCohtmlComponent, and UCohtmlHUD.

ResizeRenderTarget()

virtual void UCohtmlBaseComponent::ResizeRenderTarget ( int32  width, int32  height  )

virtual

Resizes the texture where the View is drawn

SetSoundAttenuation()

void UCohtmlBaseComponent::SetSoundAttenuation

(

const FSoundAttenuationSettings &

Settings

)

Sets the AttenuationSettings for the Sound Components Note: Sound is 2D by default. It can be changed to 3D if appropriate AttenuationSettings is set. for more details look at Unreal's documentation for AttenuationSettings

ShowPaintRects()

void UCohtmlBaseComponent::ShowPaintRects

(

bool

show

)

Tells the view to show/hide debug paint rectangles

SynchronizeModels()

void UCohtmlBaseComponent::SynchronizeModels

(

)

const

Synchronize all models marked for update.

TriggerJSEvent()

void UCohtmlBaseComponent::TriggerJSEvent	(	const FString &	name,
		UCohtmlJSEvent *	eventData
	)		const

Triggers an event in JavaScript

UpdateWholeDataModelFromObject()

void UCohtmlBaseComponent::UpdateWholeDataModelFromObject

(

UObject *

Model

)

const

Marks an Object model for update. The UI using this data model will be updated during the next call to SynchronizeModels. For optimum performance, call SynchronizeModels as rarely as possible. (e.g. once per frame)

UpdateWholeDataModelFromStruct()

void UCohtmlBaseComponent::UpdateWholeDataModelFromStruct

(

const TFieldPath< FStructProperty >

Struct

)

const

Marks a Struct model for update. The UI using this data model will be updated during the next call to SynchronizeModels. For optimum performance, call SynchronizeModels as rarely as possible. (e.g. once per frame)

Member Data Documentation

bDelayedUpdate

bool UCohtmlBaseComponent::bDelayedUpdate

Changes this component's tick group to TG_PostUpdateWork and sends bindings before drawing. For more information refer to the FAQ section of the documentation.

bEnableComplexCSSSupport

bool UCohtmlBaseComponent::bEnableComplexCSSSupport

Whether to enable support for complex CSS selectors (e.g. div > p, div ~ p)

BindingsReleased

FCohtmlBindingsReleasedSignature UCohtmlBaseComponent::BindingsReleased

When fired, the View has released its bindings.

bReceiveInput

bool UCohtmlBaseComponent::bReceiveInput

Indicates whether input is forwarded to this view

bUseWideColorTextures

bool UCohtmlBaseComponent::bUseWideColorTextures

Use 16 bit textures as intermidiate render targets for rendering the UI.

PreloadedTextures

TArray<UTexture2D*> UCohtmlBaseComponent::PreloadedTextures

PreloadedTextures collection, keeping the Textures loaded and ready for use. Ideally, the Textures are to be loaded ahead of time and kept in this collection for ensuring that the requests for UE4 textures will be working over already loaded assets, leading to fast response times.

ReadyForBindings

FCohtmlReadyForBindingsSignature UCohtmlBaseComponent::ReadyForBindings

When fired, the View is ready for binding events. Any event bound prior to this will be ignored

ScriptingReady

FCohtmlScriptingReady UCohtmlBaseComponent::ScriptingReady

Called when the View is ready to accept events

Texture

UTextureRenderTarget2D* UCohtmlBaseComponent::Texture

Gives access to the UI Texture
